Abiliquip Abiloader FX

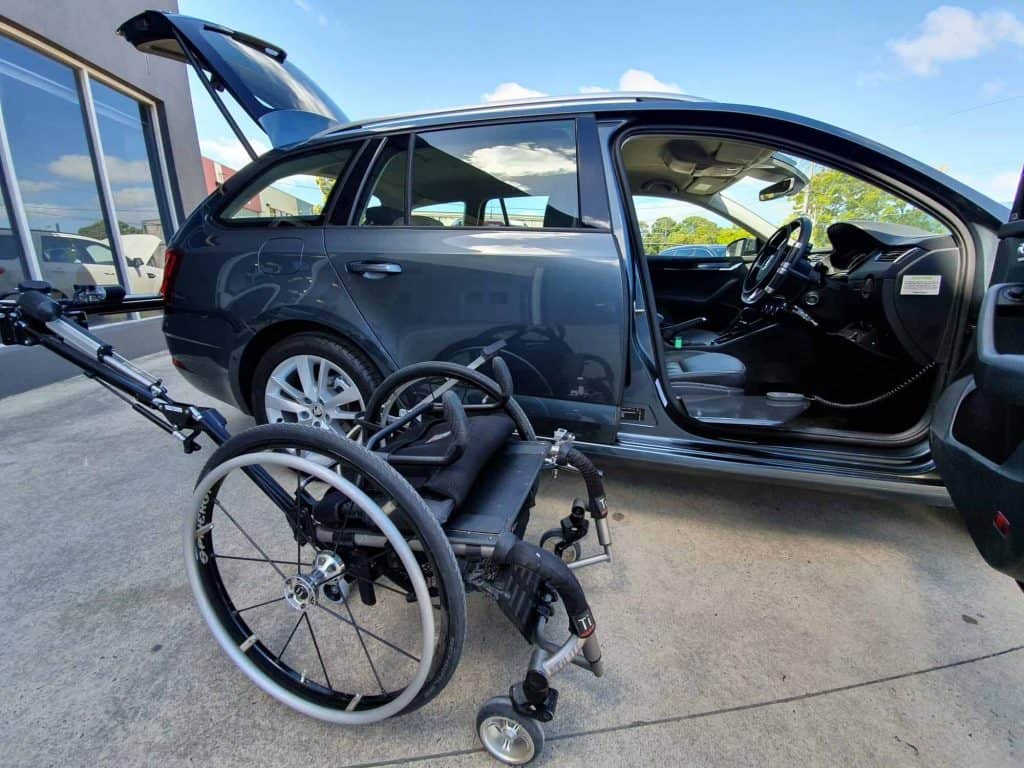

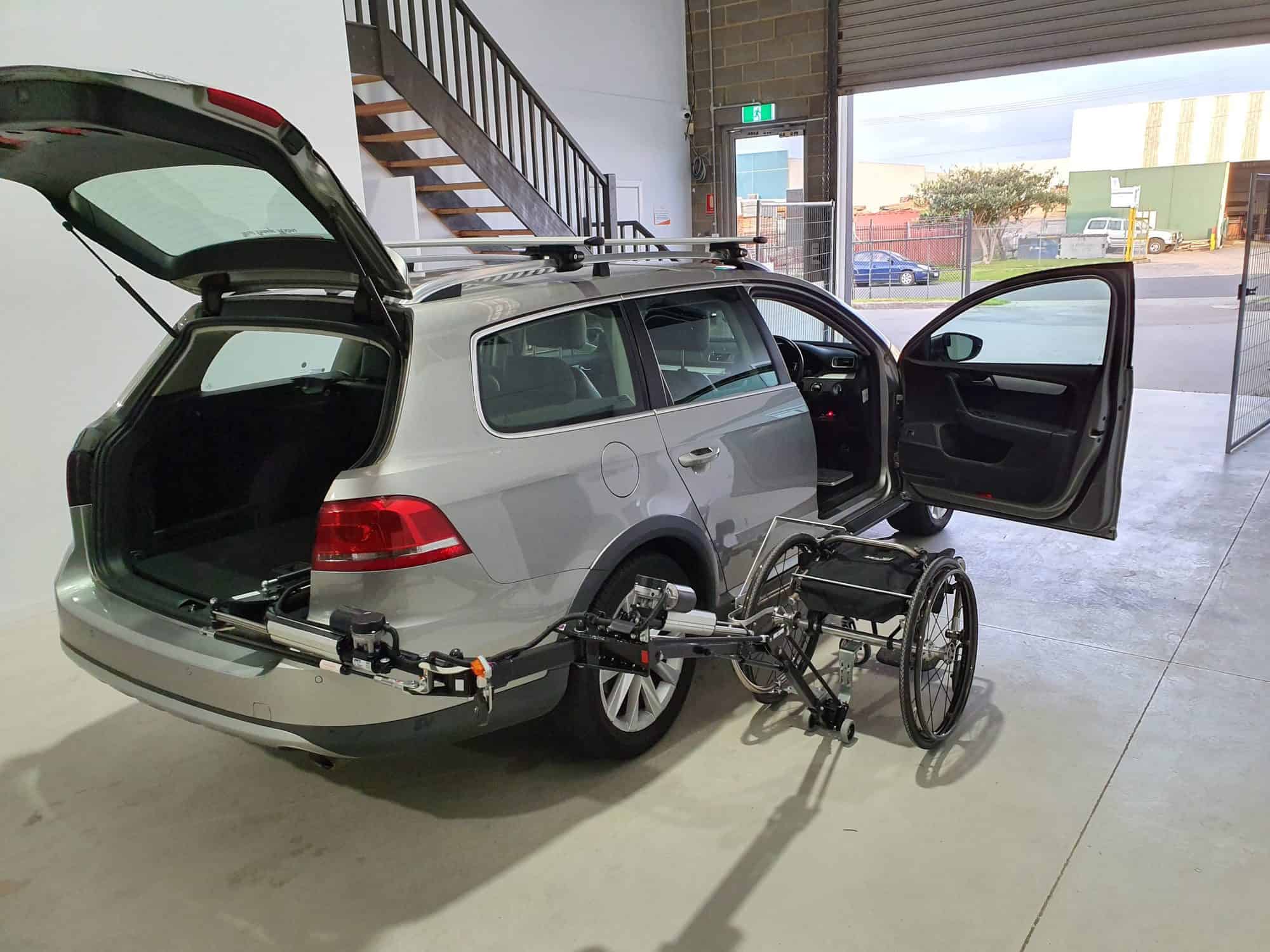

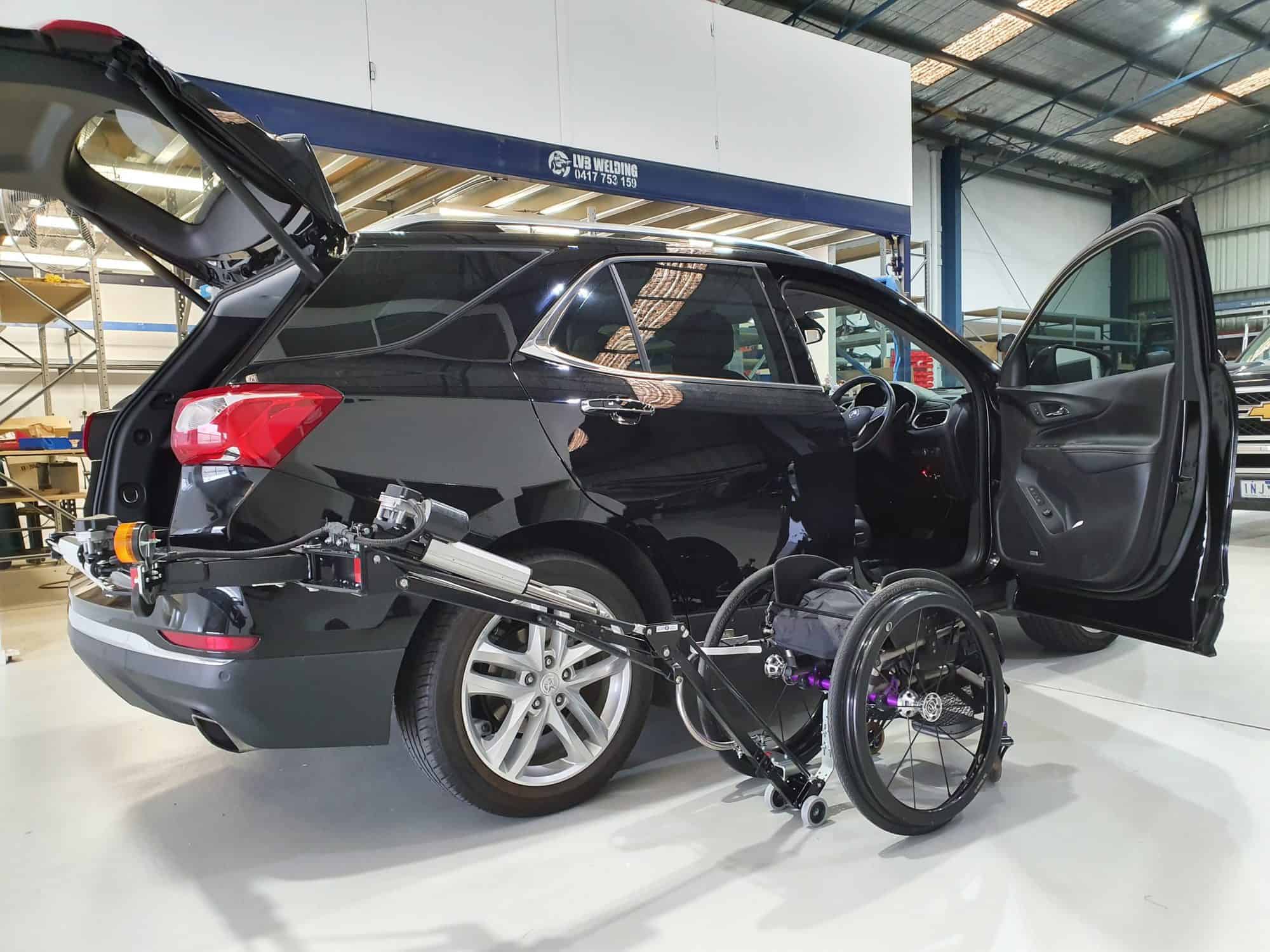

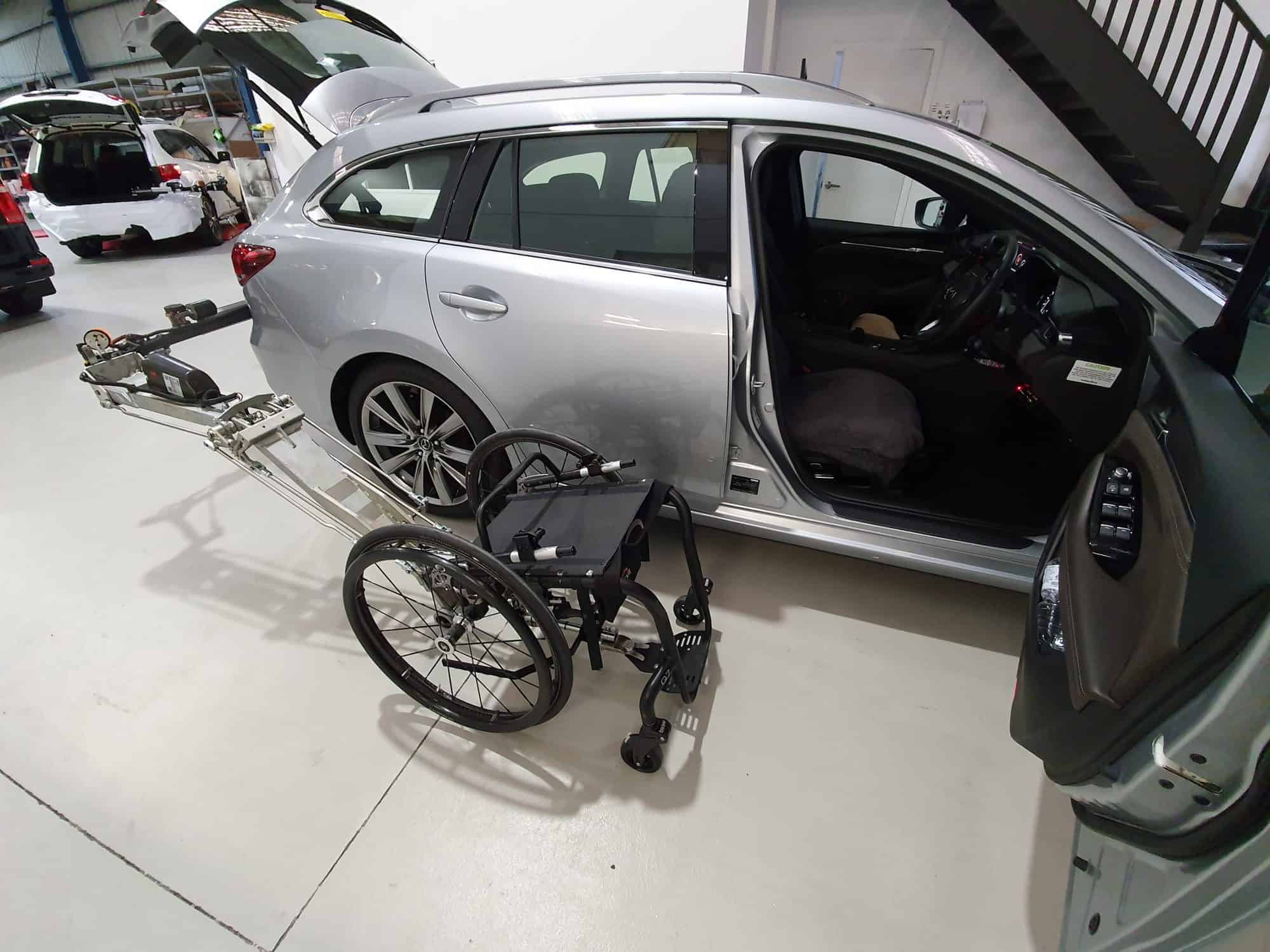

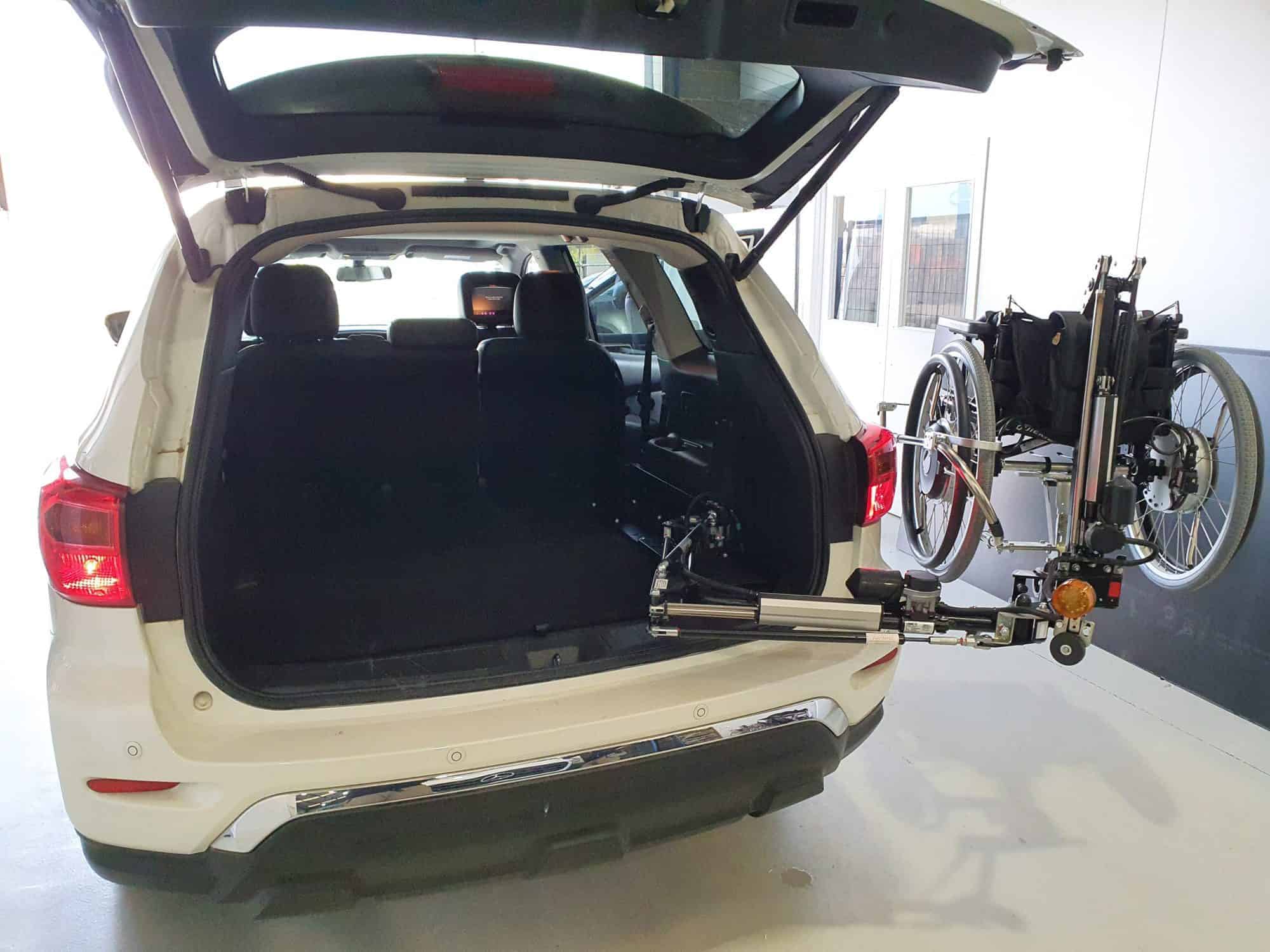

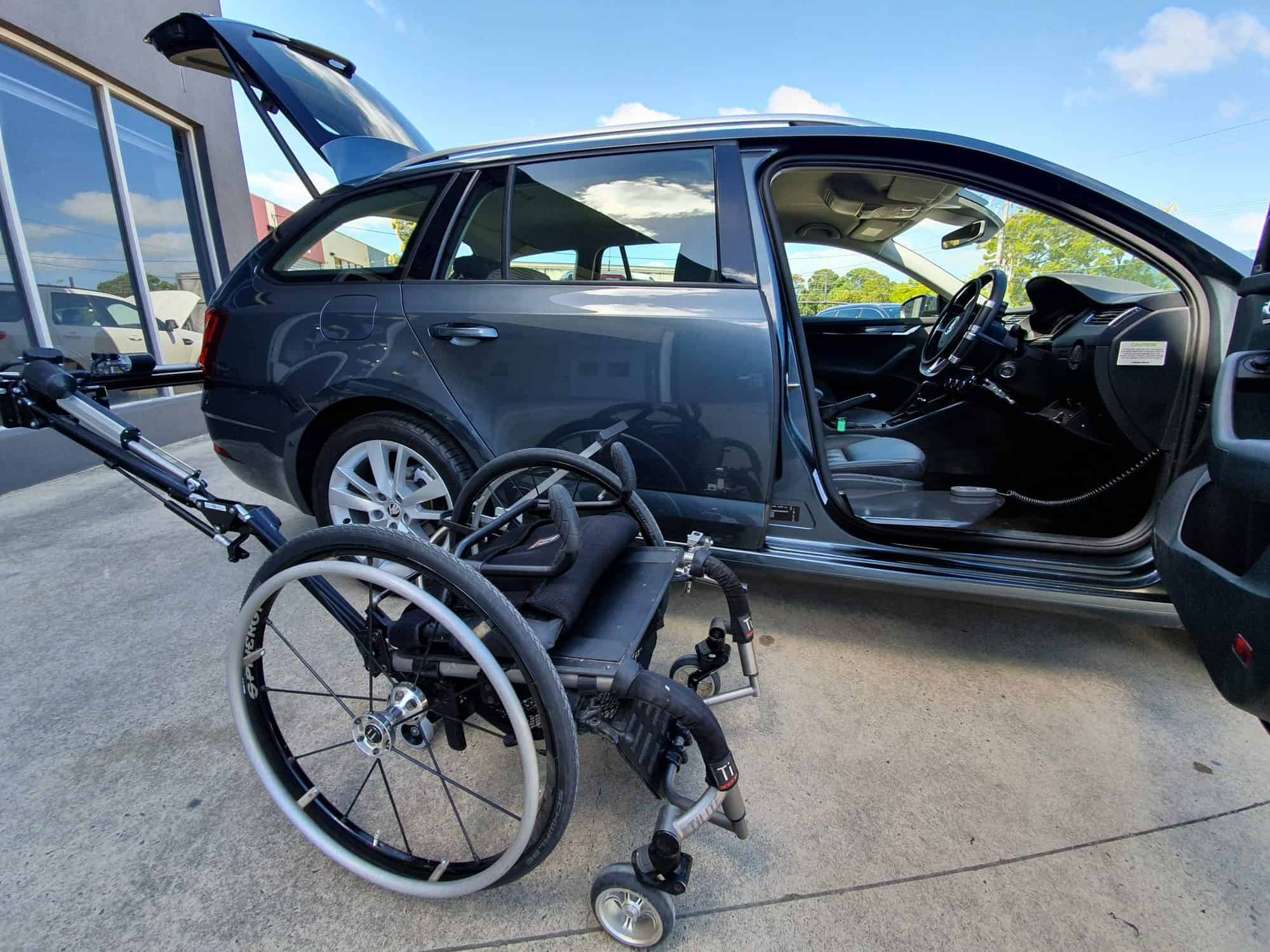

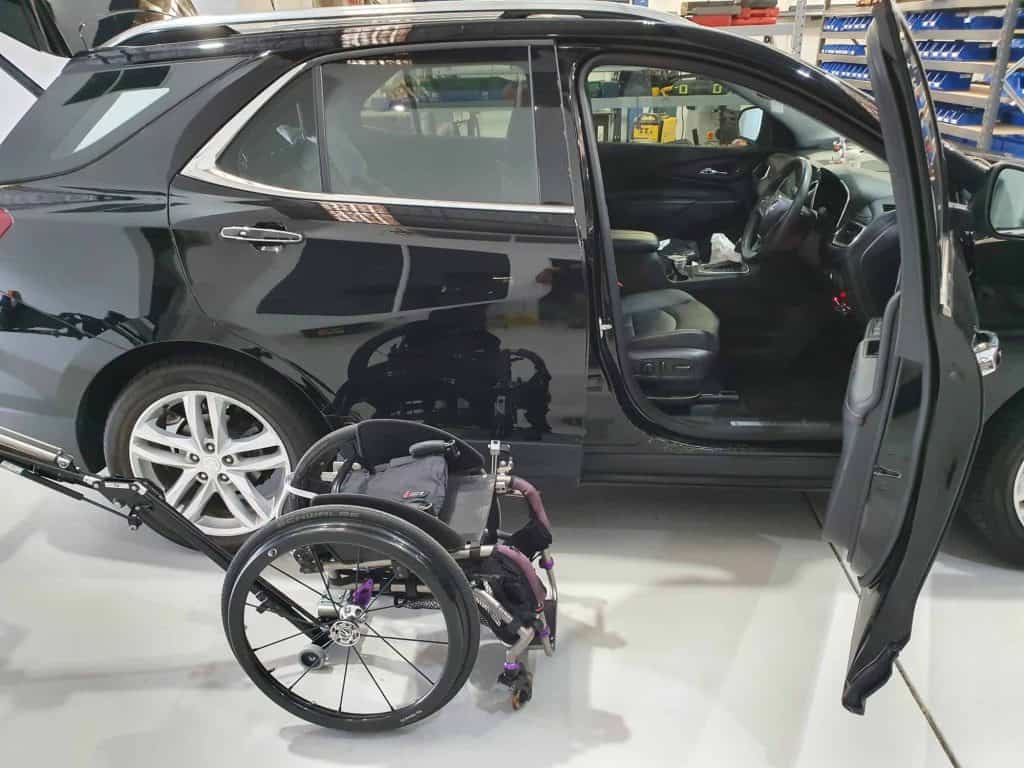

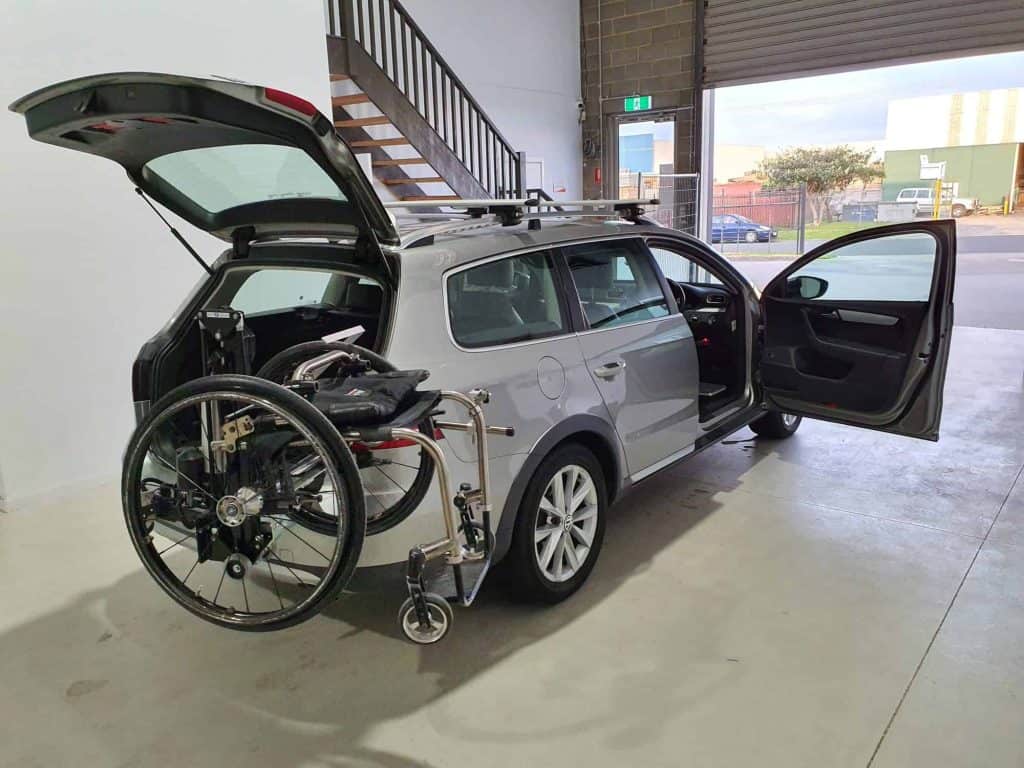

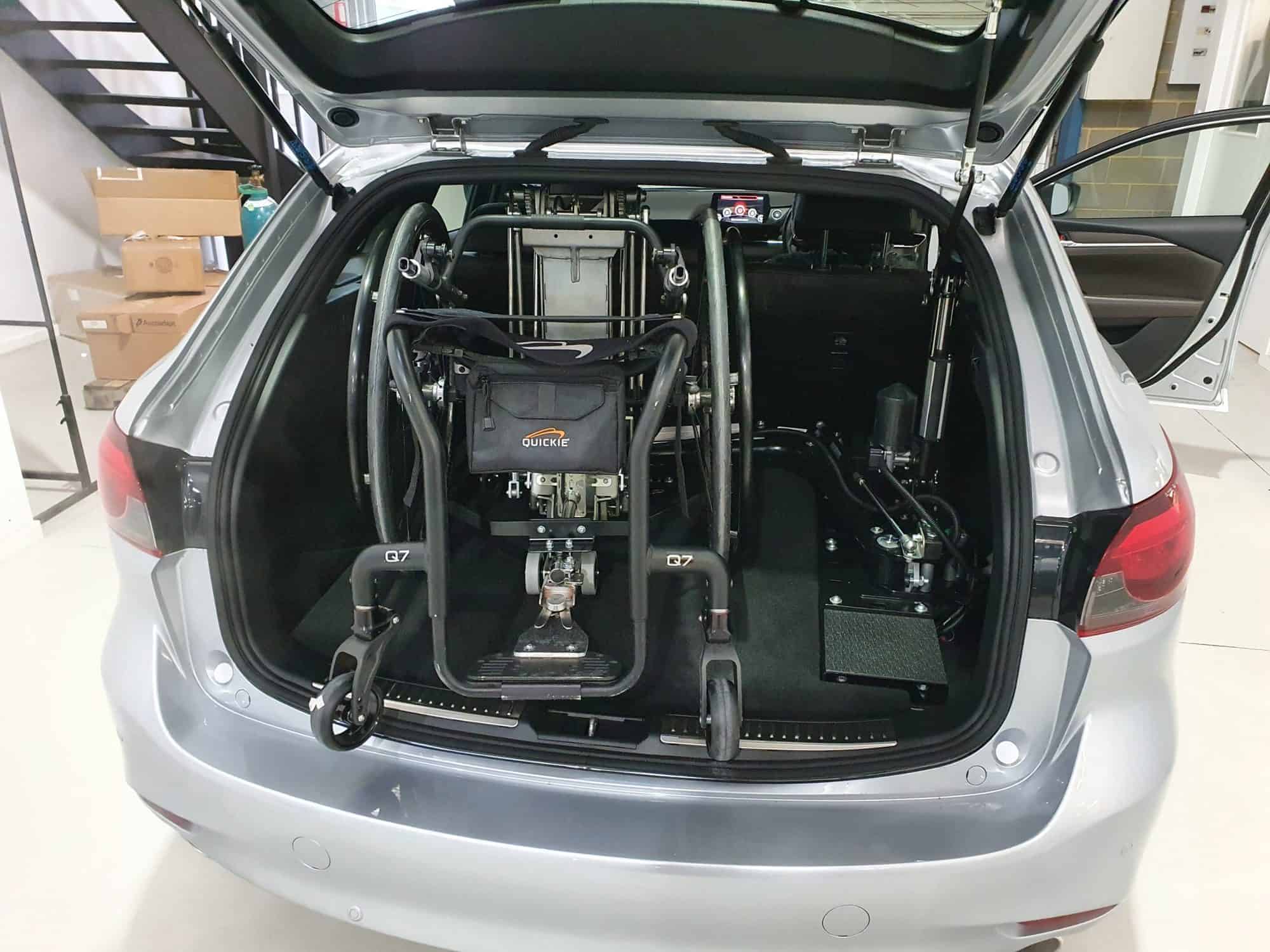

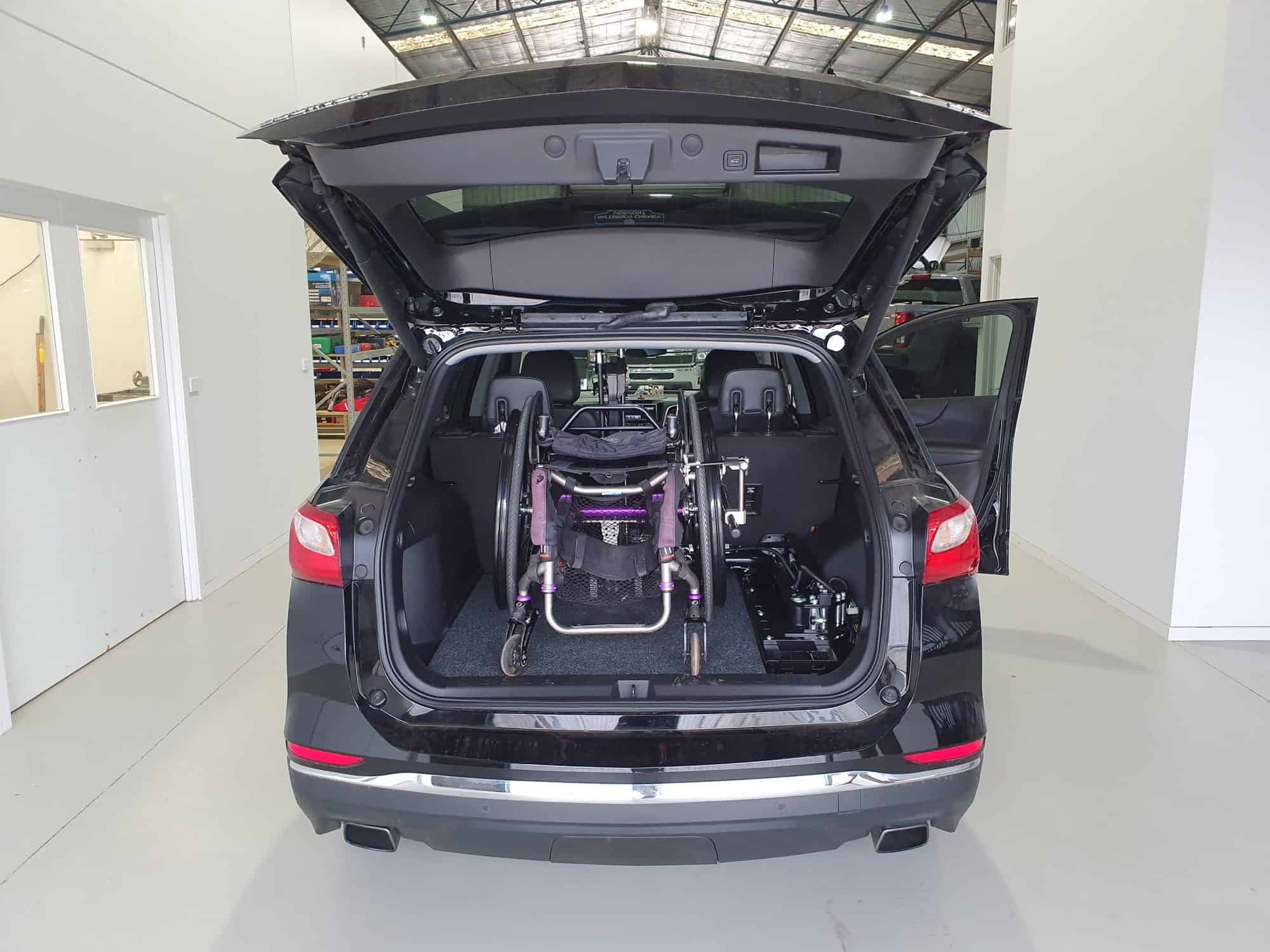

The AbiLoader-FX is a robotic arm, which delivers Fixed-Frame wheelchairs from the luggage compartment of the vehicle to the front or side door of this vehicle.

The AbiLoader may be used in cars with a high rear door, vertical or inclined, such as estate cars, station wagons, minivans, MPV, SUV, off-roaders or 4WD.

The mechanism is mechanically adjustable to allow it to fit in a wide variety of vehicles. Once set it remains correct for the life of the device.
The electrical operation is simple, requiring no electronics or calibration, for ease of installation and maintenance.

Chair unloading is driven by 2 industry-standard, highly reliable electrical actuators driven from the car electrical system. A third actuator, mounted on the main base, is used to open the boot,
where this is not already electrically controlled.

(See a separate sheet for specifications on the Foldable-chair version, the Abi-Loader FO)

Configuration: Left and Right hand drive vehicle versions
(specified at order time)
Power requirements: 12 V (car battery)
14V (running engine preferable)
Current consumption: 3.5 – 13A (normal load)
Protection: Resettable circuit breaker
Drivers: 3 Standard Linak actuators
Trunk Lid: Electric lock release and opened automatically by actuator
Operating temperature: – 25°C to + 40°C
Mass (Approx.): 48 kg
Wheelchair weight: 25kg normal load (up to 32kg heavy load)
Time of operation: 25 – 30 seconds (Trunk to driver’s door or vice versa)
